   QH11D系列精密剪板機性能特點：●相比較傳統剪板機外形美觀，簡潔時尚●剪切精度高●后擋料采用齒條齒輪傳動（手動、電動）控制尺寸精準●傳動采用電磁吸盤制動，電機與閉合式齒輪箱與軸轉動，結構緊湊；可單次、可連續●不剪切時，電機不轉動，減少無為的消耗，節約能源，是新一代節能產品●適合薄板加工，APS、PP片板等非金屬材料的加工剪切

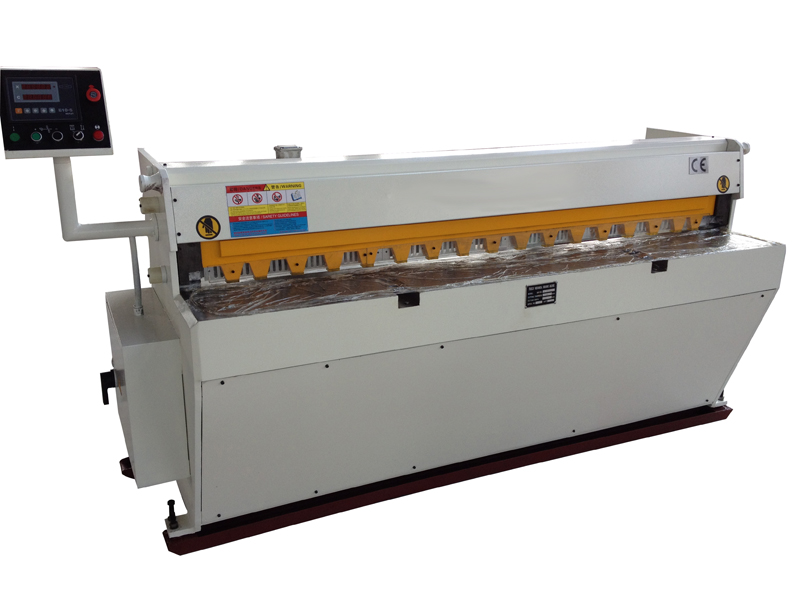

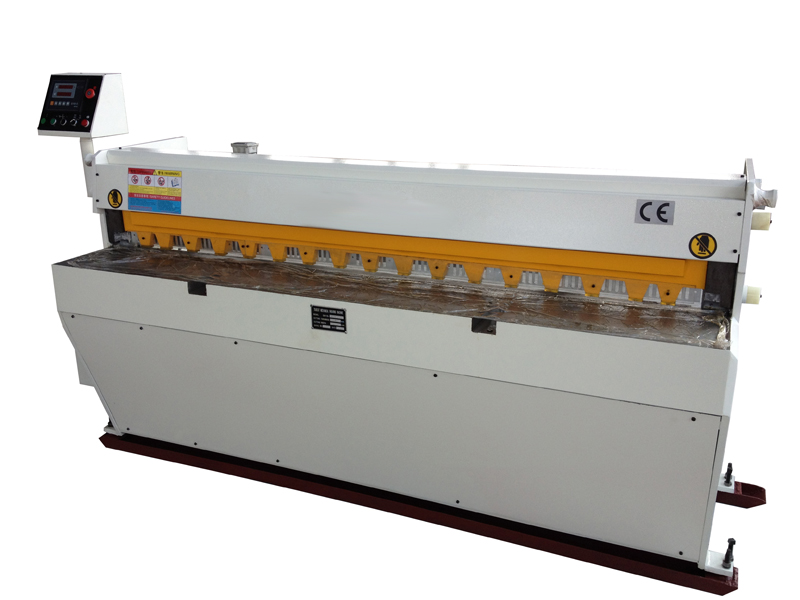

Performance characteristics of QH11D series precision shearing machine:
Compared with traditional shearing machines, it has a beautiful appearance, simple and fashionable
● High cutting accuracy

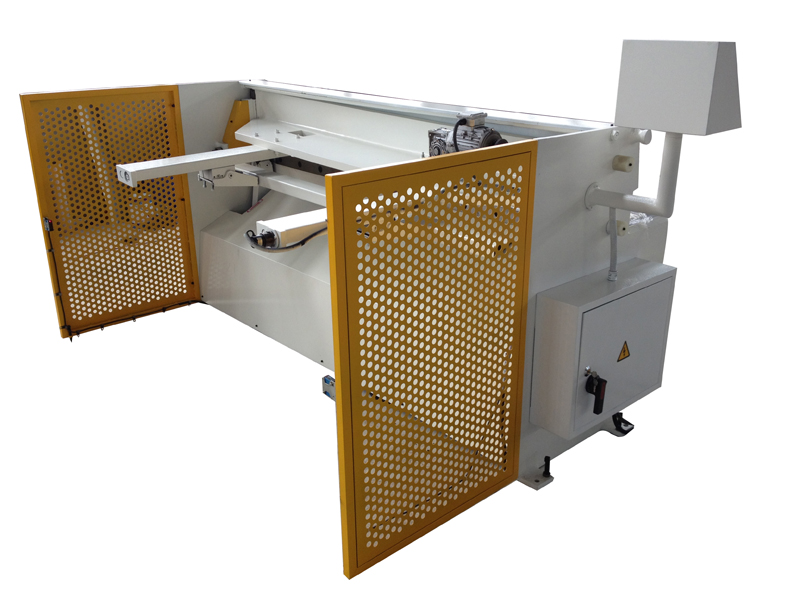

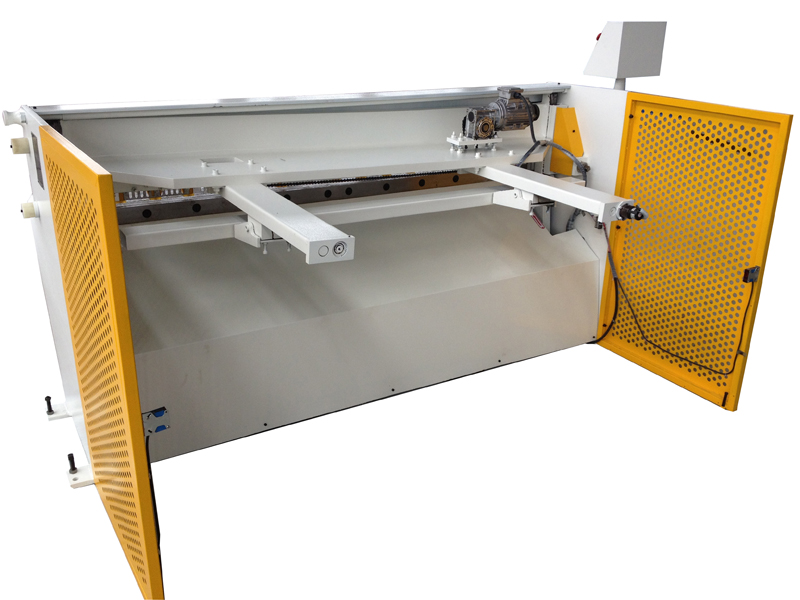

The rear gear adopts rack and pinion transmission (manual, electric) to control the size accurately
The transmission adopts electromagnetic suction cup braking, and the motor and closed gearbox rotate with the shaft, with a compact structure; Can be done once or continuously
When not cutting, the motor does not rotate, reducing the consumption of inactivity and saving energy, making it a new generation of energy-saving products
Suitable for thin plate processing, cutting of non-metallic materials such as APS and PP sheets
 QH11D系列精密剪板機相關知識介紹：
可剪板寬：6*2500mm
可剪板厚：0.3―4.0mm(鐵板)，0.3-2.0mm（不銹鋼）
額定功率：5.5KVA
額定電壓：380VAC 50HZ
機器凈重：3200KG

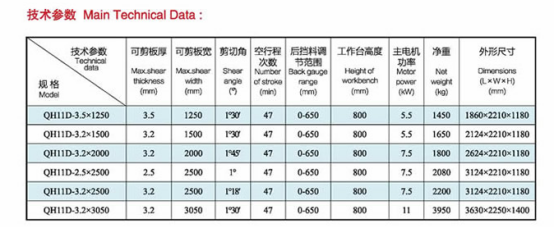

Introduction to QH11D series precision shearing machine related knowledge:
Scissorable board width: 6 * 2500mm
Scissorable plate thickness: 0.3-4.0mm (iron plate), 0.3-2.0mm (stainless steel)
Rated power: 5.5KVA
Rated voltage: 380VAC 50HZ
Net weight of machine: 3200KG
|
|
