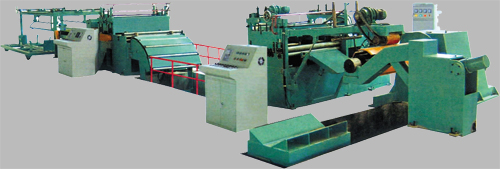

TQ44K系列數控板料開卷校平剪切線


產品特點:
  板料開卷校平剪切線具有高效定尺剪切鋼板之功能,可將各種卷板材料經開卷、整平、定尺、分條、同時剪切成不同規格板材,分類堆放整齊。對于大量使用不同規格板材的企業,能夠顯著地增加產量,降低成本,保證質量,提高生產效率。在剪切線之后可配置數控回轉頭壓力機,雙動薄板拉伸機,可加工零價一次成型,是現代企業必不可少的高效加工機械。
  TQ44K系統數控板料開卷校平剪切線,主要用途是將冷軋、熱軋鋼卷板校剪切成各規格的定尺板材。適用于車輛制造、家用電器、開關電器、鋼結構辦公用品、不銹鋼廚房用品、機器制造等行業。

Product Features:
The sheet material uncoiling, leveling, and cutting line has the function of efficiently cutting steel plates to a fixed length. It can uncoiling, leveling, sizing, slitting, and cutting various coil materials into different specifications of plates, and classify and stack them neatly. For enterprises that extensively use boards of different specifications, it can significantly increase production, reduce costs, ensure quality, and improve production efficiency. After the cutting line, a CNC rotary head press and a double action thin plate stretching machine can be configured, which can process zero price one-time forming and is an essential high-efficiency processing machinery for modern enterprises.
The TQ44K system CNC sheet metal uncoiling, leveling, and cutting line is mainly used to cut cold-rolled and hot-rolled steel coils into various specifications of fixed length sheets. Suitable for industries such as vehicle manufacturing, household appliances, switchgear, steel structure office supplies, stainless steel kitchen supplies, and machine manufacturing.

規格
Specifications
T44QK-1.5×1500
T44QK-2.0×1350
T44QK-3×1600
T44QK-3×1200
T44QK-5×1600
剪切最大板寬
Maximum cutting width of the board
1500
1350
1600
1200
1600
剪切最大板厚
Maximum cutting thickness
1.5
2.0
3
3
5
剪切長度范圍
Range of cutting length
10.0-9999.9
10.0-9999.9
10.0-9999.9
10.0-9999.9
10.0-9999.9
剪切精度
Shear accuracy
±0.05
±0.05
±1.0
±1.0
±1.0
整平輪數量
Number of leveling wheels
≥5
≥5
≥5
≥5
≥5
整平輪外徑
Outer diameter of leveling wheel
110
125
135
135
180
最大分條數目
Maximum number of segments
4
4
4
4
2
送料速度
feeding speed
35000
30000
25000
20000
25000
主電機功率
Main motor power
11
11
22
22
22
重量weight(Kg)
18000
19000
26000
26000
40000
